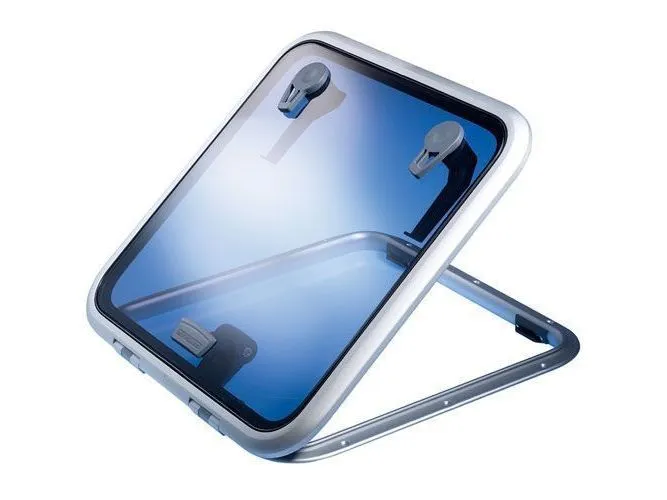

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.
- Outside handles allow the hatch to be opened from on deck if it is not locked
- Low profile hatches open up to 180° (round hatches open to 170°)
- Friction levers hold the lid open in any position up to 95°
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
Mounting Instructions
Fit to a flat surface with a maximum tolerance of /- 1mm.
Fastening size at hinge section use (M6 / 1/4").
Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specification
- Support System - Self Supporting
- Lower Frame (mm) - 15
- Acrylic Colour - Smoke Grey
- Hatch Weight (kg) - 3.9
- Acrylic Window Thickness (mm) - 8
- Length X (mm) - 397
- Width Y (mm) - 527
- Height Z (mm) - 25
- Radii R (mm) - 72.5
- Cut-Out Length X1 (mm) - 327
- Cut-Out Width Y1 (mm) - 457
- Cut-Out Radii R1 (mm) - 42.5
