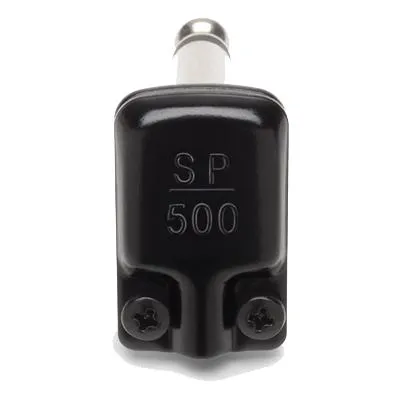

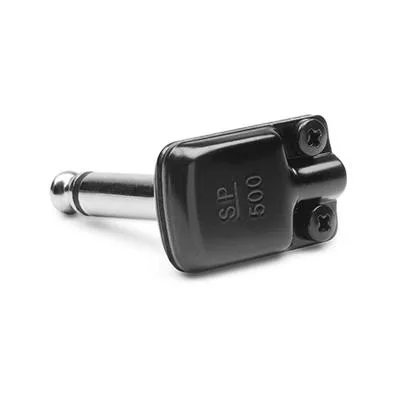

SquarePlug SP500BK, all-black version [top cover and body] of the SP500 | 8.3mm [body thickness] x 17mm [body width] x 28mm [body length] | fits cables up to 5.6mm OD

→ Ultra–low–profile connector [measures only 8.3mm / 0.326" x 17mm / 0.67" x 28mm / 1.10". 20% smaller in volume than the Switchcraft 228/229]

→ Serviceable, all–metal plug designed to snug–fit medium diameter cables for optimum strain relief and improved emi protection

→ 2 solder tabs for quick and easy soldering/desoldering

→ Insulation sheet to prevent hot and ground signals from shorting

SP500 works with cables up to 5.5mm (best if used with cables between 5 and 5.5mm, as SP400 covers smaller dia. cables). We're therefore expanding the range of cables that can be used with our ultra-low profile 'pancake' connectors.

SP500 and SP400 share the exact same dimensions except for thecable opening.

The SP-500 is compatible with any 5,5mm [0.216 inch] cable diameter or less.
Popular SP500-compatible cables include: Belden 1865A, Belden 8218, BTPA CA 0492, BTPA CA 0678, Bill Lawrence BL-150, Canare GS-4, Evidence Audio Monorail, Free the Tone CU-418, George L's 155, Lava Mini ELC, Lava Mini Tightrope, Lava Mini Ultramafic, Mogami 2314, Mogami 2319, Mogami 2552, Sommer SC-ONYX TYNEE, VanDamme Pro Patch.

The SP500 plug is compatible with the following popular switching systems: VoodooLab Pedal Switcher, PX8, PX8 Plus, HEX, RJM PBC, Mini Effect Gizmo, MusicomLab 6M, 62M, 8L, MKIV, MKV, Providence Audio PEC-4V, PEC-2, IdeaBench Switcheroo, Carl Martin Octaswitch, Octaswitch mkii, Vinteck V8, Cusack Music: PBT9, PBT6 [Not Compatible with The GigRig G2 and Boss ES5/8].
